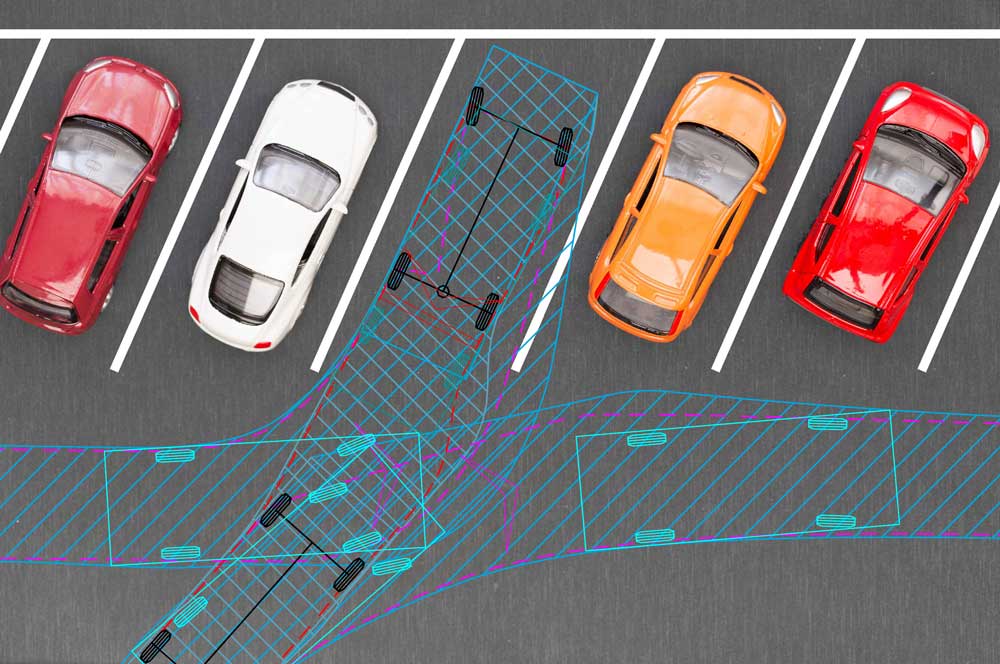

Swept Path Analysis West Midlands

Welcome to JG Highway Design LTD, your go-to destination for comprehensive Swept Path Analysis in West Midlands. We specialise in providing detailed analysis for highway design projects, ensuring the safety and efficiency of road networks in the West Midlands. We use advanced software to simulate vehicle movements and identify potential conflicts, guaranteeing that your project meets the highest safety standards and regulatory requirements.

Partner with us today for accurate and competitively priced SPA services tailored to your project specifications, paving the way for a successful road network designed with precision and care. Your journey to safe and compliant road design begins with us at JG Highway Design LTD!

We are competitively priced.

Get in touch to discuss your requirements in detail without obligation.

07786967654
01326765530

Learn more on our main website

Our Services

Swept Path Analysis

For all your Swept Path Analysis (SPA) needs, trust JG Highway Design Ltd to deliver, aiding in the development of your final site layout design and subsequent planning application. Swept path analysis is typically required in response to concerns raised during the planning process, whether in the pre-application phase or during live application evaluations. Our expertise caters to both small homeowners and major developers, with our analysis often serving as the linchpin in securing highway authority approval for planning requests.

Highway Access Design

The significance of highway access design cannot be overstressed in the development of residential, commercial, or industrial sites, pivotal for obtaining planning approval. Without ensuring a “safe and suitable access,” achieving development is an uphill battle! In accordance with paragraph 108 of the National Planning Policy Framework (NPPF), developers must ensure that “safe and suitable access to the site can be achieved for all users.” Collaborating with a diverse clientele, including homeowners, landowners, architects, and developers, JG Highway Design Ltd offers comprehensive technical design drawings, guaranteeing optimal Highway Access Design in the West Midlands.

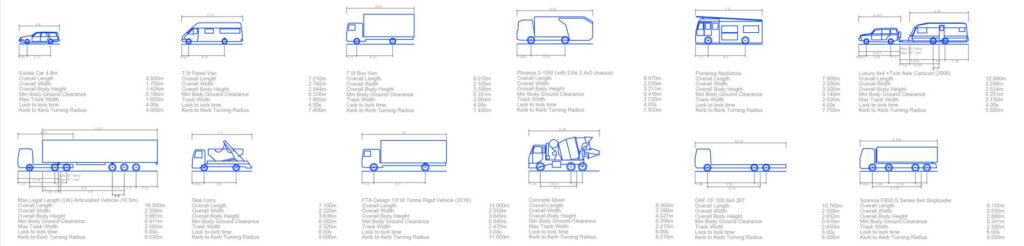

Swept Path Analysis in West Midlands

We Can Provide You With Detailed Technical Drawings For:

  • Parking Layout and Optimisation
  • Delivery Vehicle Turning and Turning Heads
  • Site Access Design
  • Junction Design Including Ghost Islands (right-hand turn lanes)
  • Pedestrian Crossings
  • Residential and Industrial Estate Roads
  • Agricultural Access
  • Construction Traffic Management Plans (CTMP)
  • Access Emerging Visibility Splays
  • Householder Planning Applications
Learn more about our technical drawings
